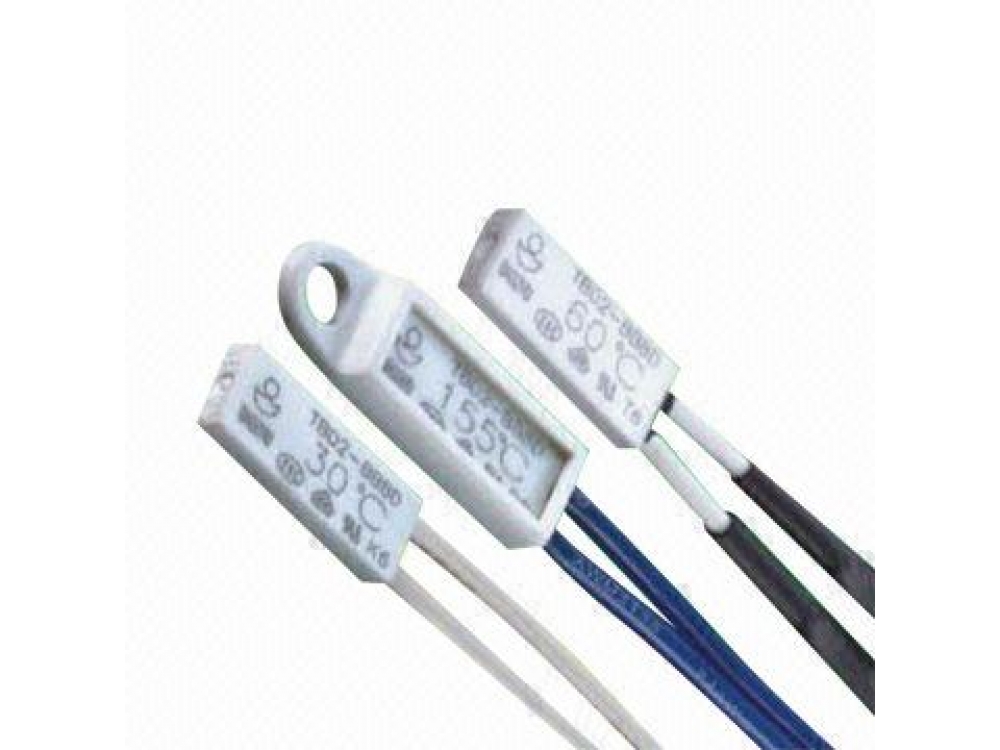

Type: Snap action, automatically resettable
Rating: 2AMPS/250VAC, 3AMPS/125VAC, 3AMPS/24VDC, 4AMPS/12VDC.
Temperature range: 30°C - 155°C (Standard tolerance: ± 5°C or customized)
Application: Battery pack, Shaded pole motor, AC motor and pump, Fluorescent lighting and ballast, Transformer, Heating appliance, Portable power tool etc.
• Miniature size.
• Snap-action design, quick break/quick make switching action.
• Preset calibration temperature, not field adjustable.
• Automatically resettable.
• Bimetal resistance <25mohm.
• Suitable for vacuum impregnation processes.
• Current and temperature sensitive.
• 2AMPS/250VAC, 3AMPS/125VAC, 3AMPS/24VDC, 4AMPS/12VDC.
• These ratings are applicable for 10,000 cycles.
• Certifications: UL,TUV,VDE.
• Available from 30˚C to 155˚C.
• In 5˚C increments with a standard tolerance of +/- 3˚C, +/-4˚C, +/-5˚C.
• Reset temperature is approximately 70% of response temperature.
Battery pack, Shaded pole motor, AC motor and pump, Fluorescent lighting and ballast, Transformer, Heating appliance, Portable power tool etc.
