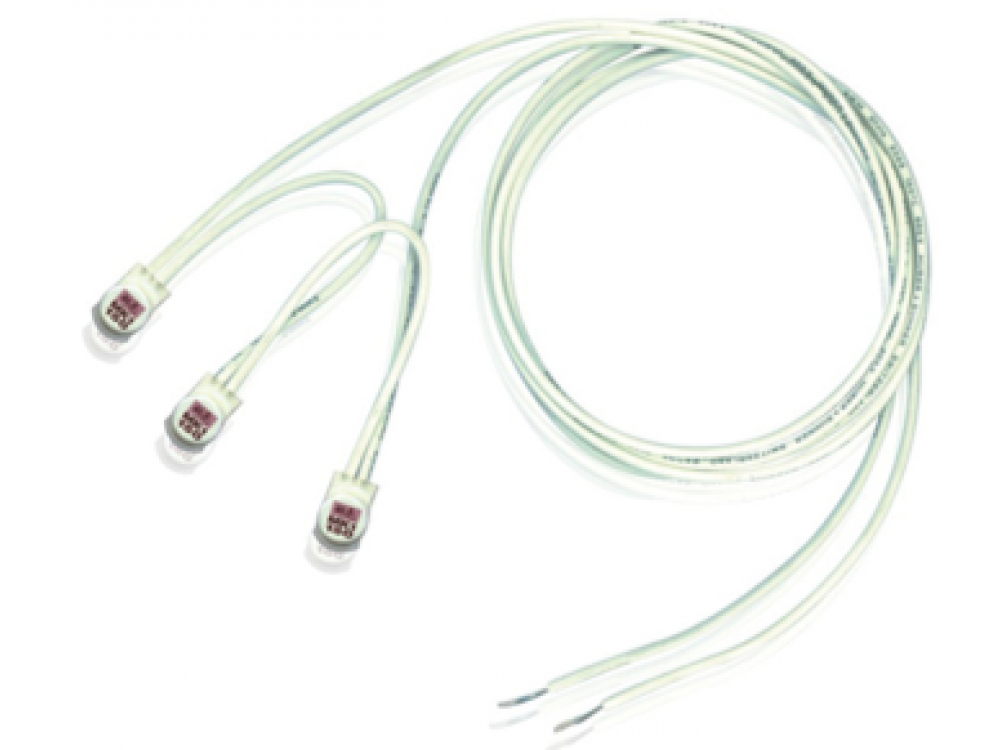

Thermal Protector MK1

Type: Snap-action

Rating: (AC:COSΦ=1.0) 2.50A/250VAC, 0.75A/500VAC. (AC:COSΦ=0.6) 1.60A/250VAC, 0.5A/500VAC.

Temperature range: 60°C- 200°C (Standard tolerance: ± 5K)

Application: Over-temperature protection of motors.

FEATURES

• Snap-action design, quick break/quick make switching action.

• Preset calibration temperature, not field adjustable.

• Normally embedded in the winding of motors.

• Automatically resettable.

• Miniature size.

• Temperature sensitive.

CONTACT RATINGS

• (AC:COSΦ=1.0) 2.50A/250VAC, 0.75A/500VAC. (AC:COSΦ=0.6) 1.60A/250VAC, 0.5A/500VAC.

• 2.5A: 10,000 cycles, 5A: 2000 cycles.

• Certifications: UL&CE.

CALIBRATION TEMPERATURE RANGE

• Available from 60˚C to 200˚C.

• In 5˚C increments with a standard tolerance of +/-5˚K.

• Reset temperature range(under rated switch temperature): 30K+/-15K.

APPLICATIONS

Over-temperature protection of motors.
