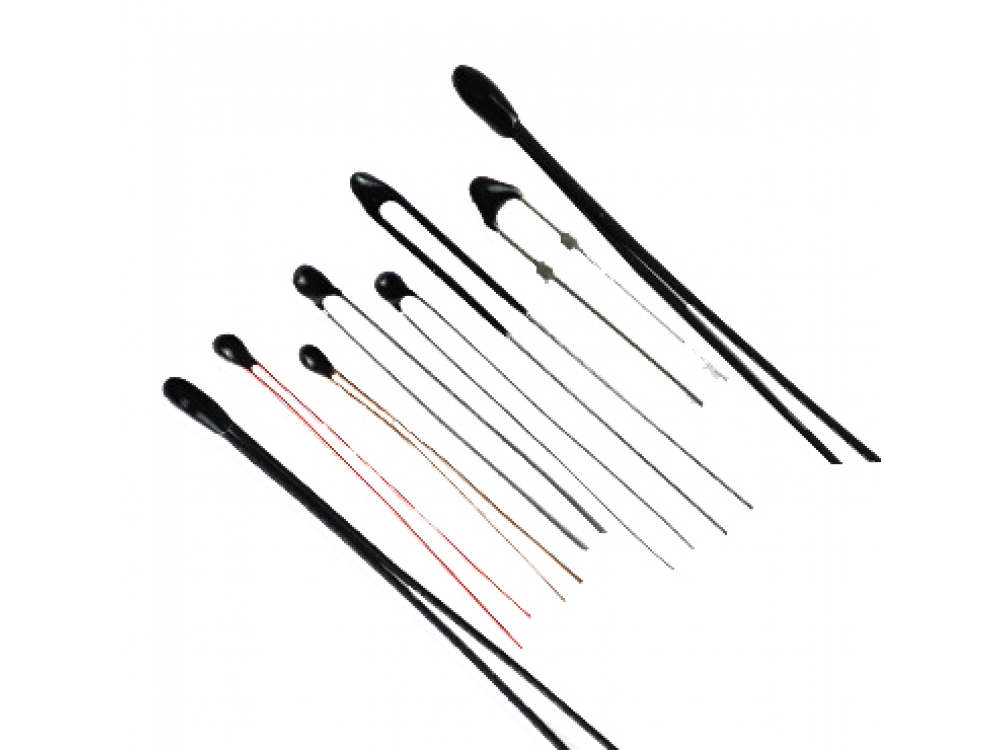

The ethoxyline resin coated NTC thermistor is for temperature measurement. It provides the benefit of close tolerances and fast response.
• Miniature size and fast response
• Available tolerances: ±1%, ±2%, ±3%, ±5% and ±10%
• Long-term stability and reliability
• Excellent tolerance and interchangeability
• Available in all popular resistance values
• Dissipation constant ≥2.0mW/°C
• Time constant of ≤12 seconds in still air
• Available in custom probes
|
Rated Resistance R25 |
B Value(25/50˚C) |
Rated Power |
Dissi. Coef. (mW/˚C) |
Thermal Time Constant(S) |
Operating Temp. |
|
Range(KΩ) |
(K) |
(mw) |
|||
|
0.1-20 |
3100 |
≤50 |
≥2.0
In Still Air |
≤12
In Still Air |
-55˚C-125˚C |
|
0.2-20 |
3270 |
||||
|
0.5-50 |
3380 |
||||
|
0.5-50 |
3470 |
||||
|
1-100 |
3600 |
||||
|
5-100 |
3950 |
||||
|
5-100 |
4000 |
||||
|
5-200 |
4050 |
||||
|
10-250 |
4150 |
||||
|
20-1000 |
4300 |
||||
|
20-1000 |
4500 |
Heating, Ventilation & Air Conditioning, Temperature Regulation and Measurement, Electronic Thermometers, Liquid Level Sensing, Automotive Electronics, Medical Equipment and Apparatus, Battery Packs and Portable Electronics.
 |
