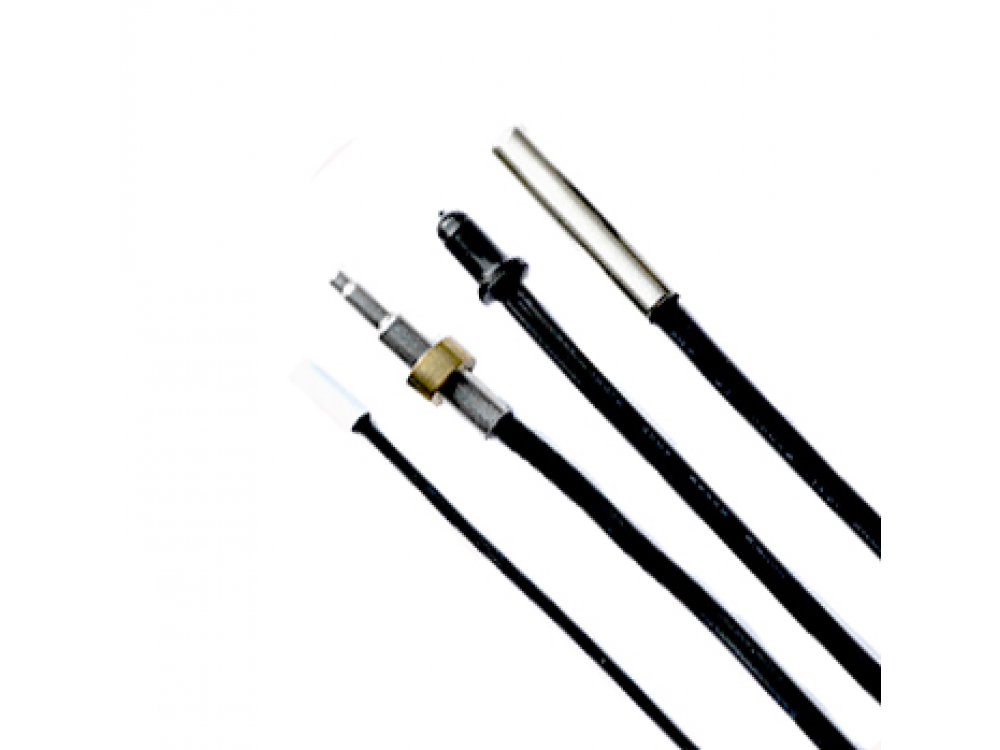

NTC Temperature Sensor

The NTC temperature sensor for temperature measurement and control of household/automobile air conditioner, refrigerator, freezer, water heater, water dispenser, fan heater, dishwasher, disinfector, washing machine, drying machine, middle/low-temperature drying oven, incubator and so on.

FEATURES

• Stable performance, long time working capability.

• High precision resistance and B-value, consistent and interchangeable.

• Sensitive, quick response.

• Highly reliable in insulation, seal, anti-impact and anti-bending.

PARAMETERS
Rated Resistance R25
B Value (25/50˚C)

Dissi. Coef. (mW/˚C)

Thermal Time Constant(S)

Operating Temp.

Range(KΩ)

Tolerance(%)

(K)

Tolerance(%)

0.1-20


±1
±2
±3
±5


3100

±1

≥2.2

≤70

-55˚C-125˚C

0.2-20

3270

0.5-50

3380

0.5-50

3470

1-100

3600

5-100

3950

5-100

4000

5-200

4050

10-250

4150

20-1000

4300

20-1000

4500
