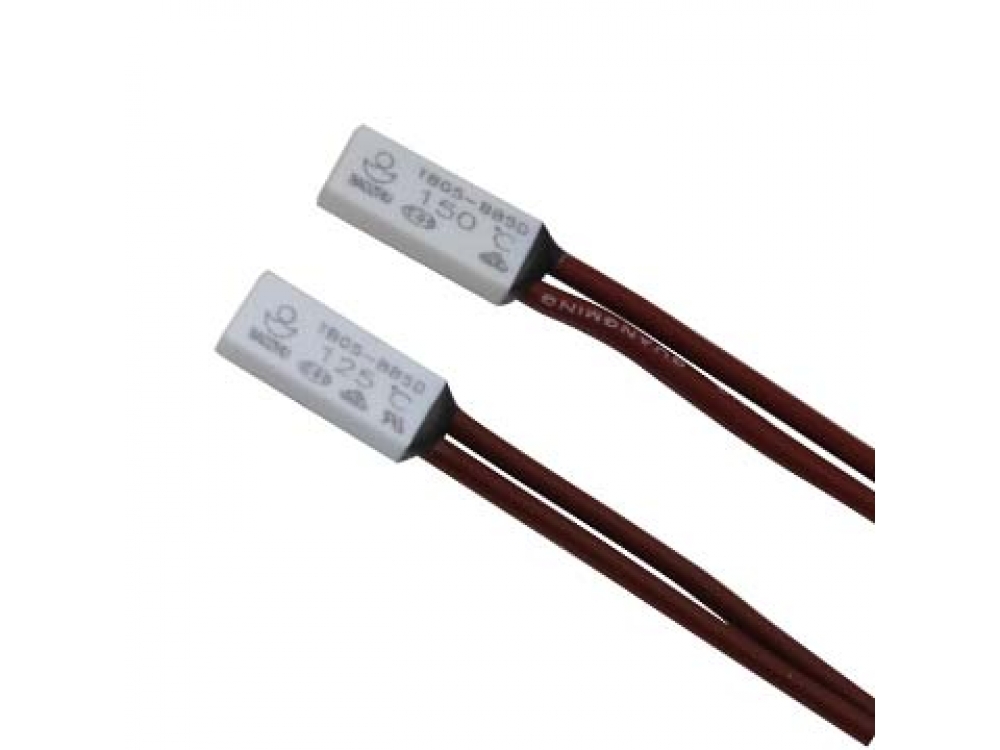

Thermal Protector TB05(Plastic/Metal Shell)

Type: Snap action, automatically resettable

Rating: 5AMPS/250VAC, 10AMPS/24VDC.

Temperature range: 30°C - 155°C (Standard tolerance: ± 5°C or customized)

Application: HID ballast, Battery pack, Fractional power motor, AC brushless motor and pump, DC motor, Heating appliance etc.

FEATURES

• Snap-action design, quick break/quick make switching action.

• Preset calibration temperature, not field adjustable.

• Clubs-shape contact, jointing better with spot welding.

• Automatically resettable.

• Suitable for vacuum impregnation processes.

• Current and temperature sensitive.

CONTACT RATINGS

• 5AMPS/250VAC, 10AMPS/24VDC.

• These ratings are applicable for 10,000 cycles.

• Certifications: UL,VDE.

CALIBRATION TEMPERATURE RANGE

• Available from 30˚C to 155˚C.

• In 5˚C increments with a standard tolerance of +/- 3˚C, +/-4˚C, +/-5˚C.

• Reset temperature is approximately 70% of response temperature.

APPLICATIONS

HID ballast, Battery pack, Fractional power motor, AC brushless motor and pump, DC motor, Heating appliance etc.
